Cone 6 Oxidation results Group 1




Cone 6 Oxidation Results Group 1
by Terry Rorison

Since I have made the decision to concentrate on firing at Cone 6 oxidation rather than Cone 10 reduction, I have begun glaze tests to build a palette of colors and finishes to choose when glazing pieces.  I also have the desire to produce the variation in the glazes that is similar to the effects  of reduction on the glazes while retaining the brightness that is possible in oxidation firing.

Thus far I have batched between 80-100 different glazes, the formulas for which have been found from publicly available sources.  After firing these tests in an electric kiln to Cone 6, I have photographed each and am making them available to potters with the accompanying formulas.

Since this is my second attempt to post this (having lost hours of work due to some glitch in Blogspot), I am breaking the postings down into smaller groups to minimize risk if a posting gets lost or deleted.  I will make a more detail explanation of my methodology at a later time.  All tiles were photographed with a Nikon D60 in a light tent with two outside lights and flash.  Each photo was cropped but otherwise not altered by software.

As always, comments and input are desired and welcome.  The results are posted in a random fashion and this first batch was fired in a programmable kiln with a two hour pre-heat at 200 degrees and a program that ramped up the temperature to Cone 6 with the kiln being shut off and cooled normally.  I will produce a set later with a slower cool down rate to promote crystal grow.

Formulas are shown in decimal format with 0.1 being equivalent to 10%.  Two clay bodies were used and glazes were fired on each.  The fit and visual difference produced by the two different bodies was very slight.  A white stoneware from Standard Ceramic #181 was used and a studio mixed stoneware body that is an adaptation of Val Cushing's Cone 10 Wheel Wiz.  The stoneware has low iron and fires out to a buff color at Cone 6 oxidation.

Tip:  Click on each photo to enlarge.  Then click again to enlarge some more.  There is a lot of detail to be seen.

2
2 Jen's Juicy Fruit Variation (Red Matte) C/6             Totals 100%




EPK 8

Gillespie borate 7.2

Nepheline syenite 39.2

Flint 9.6

Whiting 8.8

Lithium carbonate 7.2

Standard Ceramic's Red Stain 8.0

Soda ash  8.0

Titanium dioxide 4.0


4

4 Tomato Red #13 C/6




Frit 3134 0.108

Nepheline syenite 0.231

Bone ash 0.1

Magnesium carb 0.062

Whiting 0.077

EPK 0.21

Flint 0.212

Bentonite 0.02

Red Iron Oxide 0.1





 5

5 Tomato Red #13 Pumpkin Orange C/6




Frit 3134 0.108

Nepheline syenite 0.231

Bone ash 0.1

Magnesium carb 0.062

Whiting 0.077

EPK 0.21

Flint 0.212

Bentonite 0.02

Red Iron Oxide 0.1

Rutle 0.02


 6

6 Tomato Red #13 with spodumene C/6




Frit 3134 0.11

Spodumene 0.112

Bone ash 0.079

Magnesium carb 0.063

Whiting 0.079

EPK 0.216

Flint 0.217

Neph Syenite 0.118

Bentonite 0.02

Red Iron Oxide 0.1

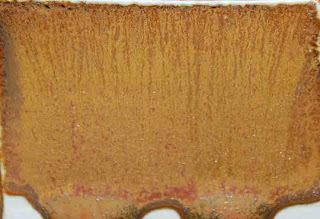

 8

8 Jen's Juicy Fruit Variation (Red Matte) Cone 6      Totals 100%




EPK 8.26

Gillespie borate 7.44

Nepheline syenite 40.5

Flint 9.92

Whiting 9.09

Lithium carbonate 7.44

Soda ash  8.26

Titanium dioxide 4.13

Black Iron Oxide 4.96










12


12 Jen's Juicy Fruit Variation Whiting C/6




EPK 0.09

Gillespie borate 0.1

Nepheline syenite 0.5

Flint 0.07

Wollastonite 0.15

Lithium carbonate 0.09

Soda ash  0.1

Titanium dioxide 0.05

Black iron oxide 0.06





17

17 Randy's Red C 5/6




Flint 0.3

EPK 0.05

G200 0.2

Talc 0.15

Gillespie Borate 0.3

Red Iron Oxide 0.15





18

18 Jade Green C 5/6




G200 0.381

Barium Carbonate 0.19

EPK 0.096

Flint 0.095

Gillespie Borate 0.095

Zinc Oxide 0.094

Copper Carbonate 0.049





21

21 Emily's Satin Matt C/6




Kona F-4 Spar 0.52

Whiting 0.19

EPK 0.14

Zinc Oxide 0.09

Flint 0.06

Copper Carbonate 0.06



36

36 Blue Green cone 6




Gillespie Borate  0.22

Strontium Carbonate  0.04

Whiting 0.11

Custer Feldspar  0.38

Flint 0.25

Cobalt Carbonate  0.005

Chrome Oxide  0.01

Bentonite 0.02



39

39 Clear Base Blue C/6




Feldspar G-200 0.2

Frit 3134 0.1

Wollastonite 0.2

Flint 0.185

EPK 0.2

Talc 0.115

Cobalt Carbonate 0.01

Copper Carbonate 0.0075

Red Iron Oxide 0.03

Rutile 0.06

 43

43 Kaki with Gillespie Borate C/6




Gillespie Borate 0.27

Flint 0.253

Custer Spar 0.169

Talc 0.118

EPK 0.042

Red Iron Oxide 0.128

Bentonite 0.02

Red Rust Bottle


Red Rust Bottle - # 147 Rusty Bronze cone 6 over all of it,  with #55 Raspberry Red over top part to middle, #140 Hansen White over the neck to line at bottom of neck all cone 6 oxidation.  Red shows as a nice blush on the surface.  Glazes were applied by dipping with no special treatment.

55 comments:

  1. This is a gold mine for anyone looking for cone 6 glazes! All the testing is done and you can try them out in your own kiln and know what to look for!!!

    ReplyDelete
  2. Thanks, Karen. Testing still proceeds in that I am a batch of the same glaze tiles ready to be fired to Cone 6 with a controlled cooling to examine to effects on the glazes that contain rutile, titanium, zinc, and red iron. I will post those results next to the "normally fired" (up to Cone 6 and off) ones shown here.

    ReplyDelete
  3. Try a slower cooling rate in your electric/oxidation kiln. These are not quite what they should be. The tomato red is not there...the iron needs a slow cool in order to form a crystallized matrix...iron red. You can try stopping your fan/vent at the very end of the firing and close the kiln, the top spy hole if open to help with the fan. A tighter load and closer kiln shelves will help with the slow cool too. Good Luck.

    ReplyDelete
  4. Darrell, I agree with your comments. Have programmable kiln so slowing the cooling rate is on my agenda. I did one batch of test tiles with a programmed cooling from 1700 -> 1400 F but there was something wrong with the thermocouple and the witness cone 7 was flat on the batch of cone 6 glazes, so I couldn't compare the two batches and I suspect some of the glazes were overfired but I don't know by how much because 7 was flat and I did not put any higher cones in that firing. Have since fixed thermocouple so I plan on doing more with controlled cooling.

    ReplyDelete
  5. Added a picture of some of the glaze combinations on a bottle at the end of this article with the three glazes identified in the order of glazing. The glaze tests with formulas were broken up into 4 sections and the numbering is random. See November's archive for the Cone 6 oxidation trials and formulas.

    ReplyDelete
  6. Too technical for me, T but like the red rust bottle!

    ReplyDelete
  7. Love the blog.
    I am wanting to make few of these glazes and I have a couple questions.
    1. Emily's Satin Matt #21 only has 91% clays etc. I didn't think the colorants eg zinc ox or copper carb counted.
    2.#36 blue green is at 102% not counting colorants....Is this OK?
    Thanks so much

    ReplyDelete
  8. Darci, This is what I batched for a 300 gram test. Could have adjusted all to add up to 100% but the ratios would still be the same. Terry

    21 Emily's Satin Matt C/6
    300 gr
    Kona F-4 Spar 0.52 156
    Whiting 0.19 57
    EPK 0.14 42
    Zinc Oxide 0.09 27
    Flint 0.06 18
    Copper Carb 0.06 18
    Bentonite 0.01 3
    Water - 80% 257
    1.07 321

    36 Blue Green cone 6
    300 gr
    Gillespie Borate 0.22 66
    Strontium Carbonate 0.04 12
    Whiting 0.11 33
    Custer Feldspar 0.38 114
    Flint 0.25 75
    Cobalt Carbonate 0.005 1.5
    Chrome Oxide 0.01 3
    Bentonite 0.02 6
    Total 1.035 310.5
    Water - 80% 248.4

    ReplyDelete
  9. What is the firing schedule for the tests? I live in France and I don't fire to Cone so and so but up to 1260°C in oxydation ? Thank you Evelyne

    ReplyDelete
  10. The firing cycle is listed on the Group 5 posting. I actually fire to 2197 F (which is about 1205 C and hold for 30 minutes and the cone 6 melts perfectly. See schedule: http://wpapotters.blogspot.com/2011/10/cone-6-oxidation-results-group-5.html

    ReplyDelete
  11. You are brilliant! Thanks so much for doing all this work for all of us. When I started potting 40 years ago, my training had been all in cone 10 reduction, but I did not have access to a gas kiln. Not many potters were firing to cone 6 in oxidation in the 70's. Thank you!

    ReplyDelete
  12. I hate to be the one to ask this but I am fairly new to the ceramic world. This will be my first attempt at making my own glaze. I have the chemicals to make a couple of these glazes, one is the blue green, I just need to know how to know how much water to add, and how do I know if the glaze is intended for brushing or dipping? Thank for any help and thanks for posting this information =]

    Janeene
    beanntony@aol.com

    ReplyDelete
  13. Janeene, I would start out by determining the weight of the chemicals. As a way of understanding, 10,000 grams with water will make enough wet glaze to almost fill a 5 gallon bucket. 5000 grams makes 1/2 that. 454 grams equals 1 pound. So 5000 grams make a little more than 10 pounds of dry chemicals. I start with 80% water by weight so if the dry batch is 5000 grams then weight out 4000 grams of water. Add the dry ingredients to the water a little at a time with stirring. When all is added and stirred, I run the mix through an 80 mesh screen 2 times. (80 mesh screen available at ceramic supply store.) Since you don't know how the glazes will turn out with your clay, firing, application, ect. I would start with a 300 or 500 gram batch (500 grams wet makes approximately a quart wet.) Make some test tiles of your clay and bisque fire them and apply the glaze several ways - dipping (one dip on whole tile and then after 10 minutes a second dip half way down.) Glaze should be the consistancy of heavy cream. To brush on the glaze should be a little thicker and you might add mineral oil to help with the brushing. Consult several books or the web for additional info that I cannot cover in this small space.

    ReplyDelete
  14. Thank you for your help, my husband and I are trying to figure this out. If we wanted to make a 300 gram batch of the blue green, could you tell me how to convert the amounts. I have a digital scale but it measures in ounces, will that work with some conversions or do you recommmend I have a scale that measures in grams? Sorry to be a pest, thank you for your help.

    Janeene

    ReplyDelete
  15. 300 grams/454grams/pound = .66 pounds. 16 oz in pound. .66 times 16 ounces = 10.56 ounces. So 300 grams = 10.56 ounces which is total weight of the batch in ounces. If an ingredient is 30% of the batch then 30% = .3. .3 times 10.56 ounces is 3.168 ounces for that ingredient. Round it to 3.2 ounces for that ingredient. Do the same for all of the ingredients converting % to decimals and multiple the decimal equivalent times 10.56.

    ReplyDelete
  16. Terrific, thank you. I'll let you know how it turns out, looking forward to it =]

    Janeene

    ReplyDelete
  17. FANTASTIC Red Rust Bottle! Thanks for all your work. Trish

    ReplyDelete
  18. Is it possible, at cone 6, to leave the outside of the ware unglazed? I kind of like the look of it, wonder if it would be durable to leave it this way.. It's stoneware.

    Janeene

    ReplyDelete
  19. Yes. The clay body that I mix has a very low moisture absorption rate (1%) when fired to cone 6 so very little water enters the fired clay body during use. If you are using the pieces to hold food, you may experience some issues with the pottery being washed and heat dried as in a dishwasher if your clay body absorbs a lot of moisture. The issues may be the crazing or spalling of the glaze as the moisture expands when heated. Best to try it and see what your results are.

    ReplyDelete
  20. I fired a batch of test tiles Sunday, specifically interested in the blue green, such a beautiful color! I'm going to try to post the pictures here. The blue green test tile is on the left. I fired it in my electric kiln, 1 hour on low, 1 hour on medium and then put the plugs in and let it fire to cone 6, (that took about 2.5 - 3 hours after switching to high). Fan was running until the end of firing and I shut it off. Seems all of the blue either burnt out or ? Not sure what happened to it, I got this green color, pretty- but really wanted the blue.. The glaze seemed a bit thick when I dipped the tile, not sure if that may be the reason. The tile to the right was dipped into the blue green and then the top was dipped into a glaze thats called creamy, and I can see the blue a bit more in that tile. Any ideas where my blue went? =]

    Janeene

    ReplyDelete
  21. Not sure how to post the pics, sorry

    ReplyDelete
  22. Hi Terry,
    Great information posted here! One thing I will add to all this amazing information is clay body! After running test after test and tossing out a few good glazes I have learned a glaze that works on one clay body is not going to work on another. And one ugly glaze on porcelain might be beautiful on stoneware. Especially the iron reds.
    enjoy reading the blog and thanks for posting all your hard work!
    Sandy

    ReplyDelete
  23. Hello Terry, Thanks for the vast info on these tests. Have you tested a separate clear glaze or are you using a base of one posted minus the oxides?
    thanks
    Robert

    ReplyDelete
    Replies
    1. Robert, most of the glossy glazes will go clear with opacifiers or oxides. Are you looking for a clear C6? Terry

      Delete
  24. cool colors where were the rest of them posted?

    ReplyDelete
  25. On the blog. Summary page:
    http://wpapotters.blogspot.com/search?updated-min=2011-01-01T00:00:00-05:00&updated-max=2012-01-01T00:00:00-05:00&max-results=21

    ReplyDelete
  26. Hi Terry
    I've just started investigating Cone 6 glazes for some sculptural pieces and your blog with all your results has been a fantastic resource - thank you!
    I'm trying to find the recipe for the #140 Hansen White you added to the top of the vase shown above. I've looked through the other pages but didn't have luck finding the recipe - if I've missed, can you please direct me to the right page or provide the recipe again?
    Thanks again
    Susannah

    ReplyDelete
  27. Susannah:
    140 Hansen Clear GA12 Cone 6 White

    Custer Spar 0.2
    Frit 3134 0.2
    EPK 0.2
    Wollastonite 0.2
    Silica 0.2
    Zircopax 0.1

    ReplyDelete
  28. Hey Terry, Is the #18 correct? I think you want Barium Carb up to 19 not 1.9???

    ReplyDelete
  29. Hello Terry, I was also looking at the #18 as was John Britt, I'm a newbe to mixing my own glazes. I see a few post about percentages, should they equal 100%, I'm coming up with a little over 800 for that receipe. Thanks...

    ReplyDelete
  30. Move the decimal to the right 2 places. Ex: .381 = 38.1% and .096 = 9.6%. If you add them all up, they equal 100% or 1.00. You convert decimals to percentages. It a recipe totals 105% for example, you can use it for batching purposes like that because it is the ratio of the different ingredients to each other that is important. For glaze #18, to make a 25 lb. batch you would take each ingredient times 25 lbs. Example for #18 : for G200 feldspar you would take .381 times 25 lbs. which would equal 9.525 lbs. To convert to lbs. and ounces take .525 times 16 ounces = 8.4 ounces. So G200 would be 9 lbs and 8.4 ounces. If don't understand, ask more questions.

    ReplyDelete
  31. I am looking for a purple cone 6 electric kiln "Glaze. Hope someone has one, I am currently working on some test tiles and can try more. Carol Fitzpatrick

    ReplyDelete
  32. These glazes all come from John Post's site at -
    http://www.johnpost.us

    You might want to consider giving him credit for developing these glazes. The tomato red glazes were developed based on a Pete Pinnell glaze and an article was written about them in clay times...

    ReplyDelete
  33. Gave John credit for some of the glazes some time ago (comments section). Glazes as you may know are posted many places sometimes with credit to the person who might have actually developed it and sometimes not. I have not taken credit for developing any of the glazes in these postings although I have modified some to create the effects seen. Taking credit is not important to me as much as sharing. I have attempted to help potters understand how to achieve certain glaze effects by providing the formulas, clay body, firing schedules, ect .

    ReplyDelete
    Replies
    1. I have a very basic question..... How do you know if a glaze is food safe or not?

      Delete
  34. I want to test the #18 Jade Green on my clay body, but I'm confused. Are the ingredient amounts in grams or percentages? How do I convert these amounts into weights?

    ReplyDelete
  35. Lynda, they are in percentages but don't always add up to 100% with the additions of oxides, but the ratios are the same. For Jade Green the first ingredient is G200 Feldspar at .381. For a 500 gram batch (total weight) you would multiply .381 by 500 grams to get 190.5 grams of G200. Hope that answers you question.

    ReplyDelete
  36. Is the Jade Green a glossy glaze finish or matte or Semi-matte? Charlene

    ReplyDelete
  37. Hello, would someone be so kind and explain to me what does it mean in de formulas that you give: 0.381,0.19,0.231,etc. I usually find them in porcentaje. Thanks!

    ReplyDelete
    Replies
    1. 0.381 is a decimal. Move the period two places to the right and you will get it as a percentage. 38.1% However it you were batching a glaze to make 2000 grams total in the batch, you would multiply 0.381 times two thousand grams to get 762 grams of that material.

      Delete
  38. Very nice colors. I live in Norway and wonder what cone 6 is. What is the top temperature?

    ReplyDelete
  39. It is not possible to get the ingrediense OM#4 Ball Clay in Norway. What can I use instead? Is it a white clay?

    ReplyDelete
  40. Cone 6 is approx 1220 degrees Celsius. OM#4 is known as Old Mine Kentucky ball clay. Follow link: https://digitalfire.com/4sight/material/om_num_4_ball_clay_1098.html Not sure about ceramic suppliers in Norway.

    ReplyDelete
  41. I love your posts. I am very grateful to have this resource to guide me. Thank you for taking the time to make this available to all fellow potters.

    ReplyDelete
    Replies
    1. Thanks, Kimberly. As to your question about how to know if glazes are food safe. #1 Safest - send to a lab. #2 -post the formula with % on a pottery forum and ask for feedback. #3 email Ron Roy of Mastering Cone 6 Glazes with formula. He gives knowledgeable advice. #4 John Britt is also very knowledgeable. #5 Leach test - put lemon juice in bowl that has glaze in question for 24-48 hours and see if it lightens. I yes then it would be an indication that the glaze is not stable.

      Delete
  42. Not sure if my last comment posted, so here it is again.
    Thanks for the reply. Next question; Are the glazes on this site deemed food safe?

    ReplyDelete
  43. None of these glazes have been tested as "food safe". Most are formulated to put the oxides in solution during the glaze melt and most do not have oxides that are over the recommended amount for use on pottery that will be used with food. That being said, I think that much of the "food safe" discussion on the forums is somewhat over blown. There are many, many things that can contribute to illness much more than the piece of pottery that the food touches. But the only way to be safe is to have your fired ware lab tested by a certified lab.

    ReplyDelete
  44. Food safe - for $1.99 you can buy this article on John Britt's website. http://johnbrittpottery.com/shop/844/

    ReplyDelete
